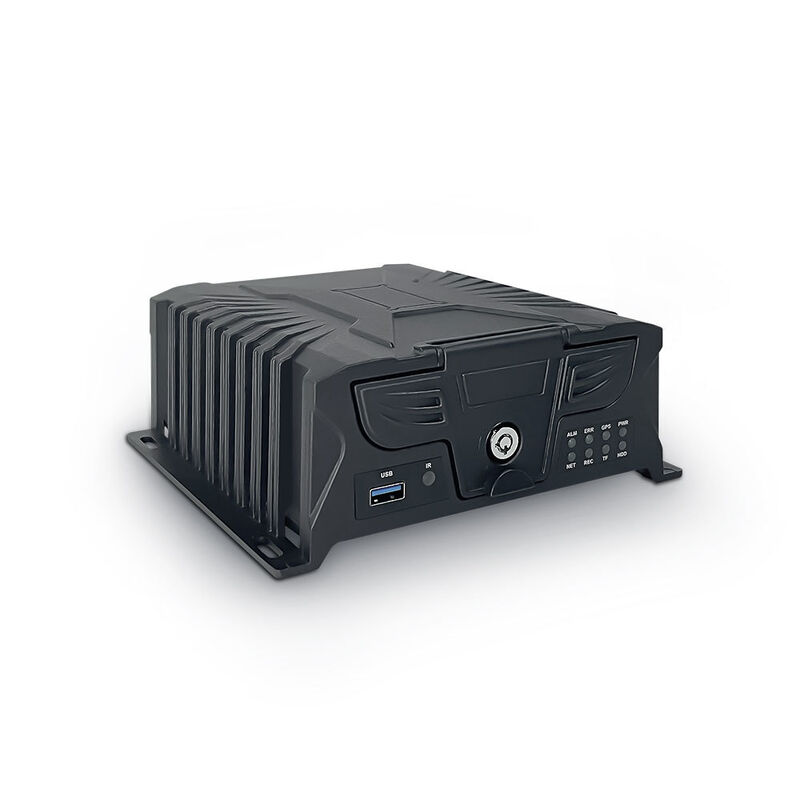

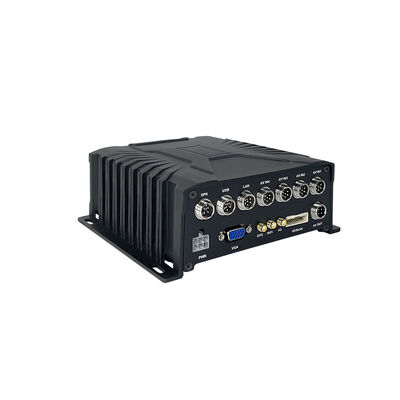

4G Mobile DVR Designed for Passenger Coaches Buses Taxis and Dangerous Goods Vehicles with Stable Performance and Easy Operation
Λεπτομέρειες:
| Τόπος καταγωγής: | Σεντζέν |
| Μάρκα: | Oxiang /OEM |
| Πιστοποίηση: | CE.RoHS,FCC |
| Αριθμό μοντέλου: | MD264 |
|
Λεπτομερής ενημέρωση |
|||
| Δίκτυο: | WiFi 2,4 GHz (IEEE 802.11 b/g/n) | Κόκκινο LED που αναβοσβήνει: | Ενεργοποίηση ΟΚ, Αναμονή για σύνδεση WiFi |
|---|---|---|---|
| Τύπος ισχύος: | Επαναφορτιζόμενη μπαταρία 18650 ή σκληρό καλώδιο AC12V-24V | ΚΑΤΑΝΑΛΩΣΗ: | Λειτουργία: 170mA Κατάσταση αναμονής: 200μA |
| Βάρος: | 600 g | Εύρος παραλαβής: | 5 μέτρα |
| Υγρασία εργασίας: | < 95% | Λειτουργία μηνυμάτων: | Μήνυμα υποστηρίξεων που αφήνει τη λειτουργία |
| Παραθυρόφυλλο: | 1/25~1/100, 000 ανά δευτερόλεπτο | ΣΧΕΤΙΚΗ ΥΓΡΑΣΙΑ: | 85% χωρίς συμπύκνωση |
| Ir απόσταση: | 3 μέτρα | Αισθητήρας εικόνας: | SC2335/SC233A |
| Οριζόντια γωνία: | οριζόντια γωνία 140 | Γωνία ανίχνευσης: | 110° |
| Λειτουργία: | 3G/4G/GPS/WIFI | Εξουσία: | DC12V/2A |
| Ρύθμιση εικόνας: | Υποστήριξη HD/SD Support Mirror | Αδιάβροχο ρυθμό: | IP55 |
| Κάμερα: | 1 mega pixel, OV9732 (125° Ευρεία γωνία) | Ευρεία γωνία: | 130 βαθμός |
| Μέγεθος οθόνης: | 7 ίντσες | Ανάλυση εισόδου της κάμερας: | ΑHD1080P/720P/CVBS |
| Τύπος αισθητήρα: | Τηλεοπτικός υπολογισμός, ακρίβεια 98% | Διάσταση οικοδεσπότη: | 200(L) x187(Π) x62(Υ) mm |
| Συμπίεση: | H.265 | Είσοδος τάσης: | προσαρμόζεται σε 8 έως 36 V υπερ-ευρεία |
| Υποστήριξη λογισμικού: | Το CMSV6 και η ιδιωτική μας πλατφόρμα | Εγγύηση: | 12 μηνών |
| SDK: | Δωρεάν SDK για δεύτερη ανάπτυξη | WIFI μεταφορτώνει: | Υποστήριξη |
| Διεπαφή λειτουργίας: | Γραφική διεπαφή χρήστη (μενού OSD) | Προσαρμογή: | Ναί |
| Αδιάβροχος: | IP69K | Άτακτος: | Δύο αντιδονήσεις |
| Λειτουργίες: | Μετρητής ατόμων, 3G, GPS, αισθητήρας G, UPS | ||
| Επισημαίνω: | 4G mobile DVR for passenger coaches,4G mobile DVR for buses with stable performance,4G mobile DVR for dangerous goods vehicles |
||
Περιγραφή προϊόντων
4CH 4G WiFi HDD/SSD MDVR specification sheet
Model:OX-MD264
![]()
1.1 Product features
This series of products is a fully functional Hard Disk Driver 4G mobile DVR designed for the mobile surveillance market. Supports wide power voltage input, supports high-capacity HDD/SSD and TF card recording; Use professional and reliable aviation plug connector; High appearance, enough materials, good heat dissipation; The device has powerful functions, rich interfaces and low power consumption; Simple installation, easy operation, and extremely stable; widely used in passenger Coach, buses, taxis, school buses, logistics vehicles, dangerous goods vehicles, Sedan cars, ships, etc.
The detailed features are as follows:
- Industrial design, stable and reliable, easy to install
- Video adopts the international mainstream H.265 encoding format, and the audio adopts G711a encoding. It can support up to 4 channels.
- Professional vehicle power supply, can adapt to 8 to 36V ultra-wide voltage input, with multiple protection circuits such as overload/short circuit/reverse connection
- Highly reliable aviation plug input and output interface, easy to install and plug, and stronger Vandal-proof performance
- Support 4 channels of video and audio input, frame rate and image quality are adjustable
- Support 1x2.5inch HDD/SSD +1xTF Card Storage
- Built-in Farad capacitor. The video content has power-off protection function
- Support video loss alarm function
- Independent delay Power shutdown, can support the system to continue running after the vehicle is turned off, the delay time can be set by yourself
- Supporting CMS client platform, providing multiple functions such as playback, analysis, management, etc
- Support HDD/SSD, TF card and U disk to upgrade firmware, support network remote firmware upgrade.
- Supports 2 USB ports, the front can be connected to a USB drive to export videos or upgrade firmware, and the back can be connected to a fireproof box to backup videos
- Support 8 x IO alarm input, 2 x IO alarm output
- Support 2 x RS232 and 1 x RS485
- Insert the intercom handle for two-way communication between the platform and the device
- Support pulse vehicle speed. Optional
- Support 4G, GPS, LAN(RJ45)
- Optional WiFi function
